Model No. |
BSL60Z-F3N |
BSL80Z-F3N |
BSL100Z-F3N |
BSL120Z-F3N |
BSL140Z-F3N |
|
Nominal Wattage |
180W |
240W |
300W |
360W |
420W |
|
Input Voltage |
AC100-305 50/60Hz or DC12/24V (with controller) |
||||
|
Power Factor (P.F) |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
| T.H.D |
<20% |
<20% |
<20% |
<20% |
<20% |
|
Luminaire Efficacy |
>120lm/W(3030 LEDs) / >150lm/W(5050LEDs) | ||||
|
C.R.I |
75±5 |
75±5 |
75±5 |
75±5 |
75±5 |
|
C.C.T |
3000K / 4000K / 5000K / 5700K / 6500K |
||||
|
Rating |
IP65,IK10 |
IP65,IK10 |
IP65,IK10 |
IP65,IK10 |
IP65,IK10 |
|
Heat Radiator |
Anodized Aluminum |
Anodized Aluminum |
Anodized Aluminum |
Anodized Aluminum |
Anodized Aluminum |
|

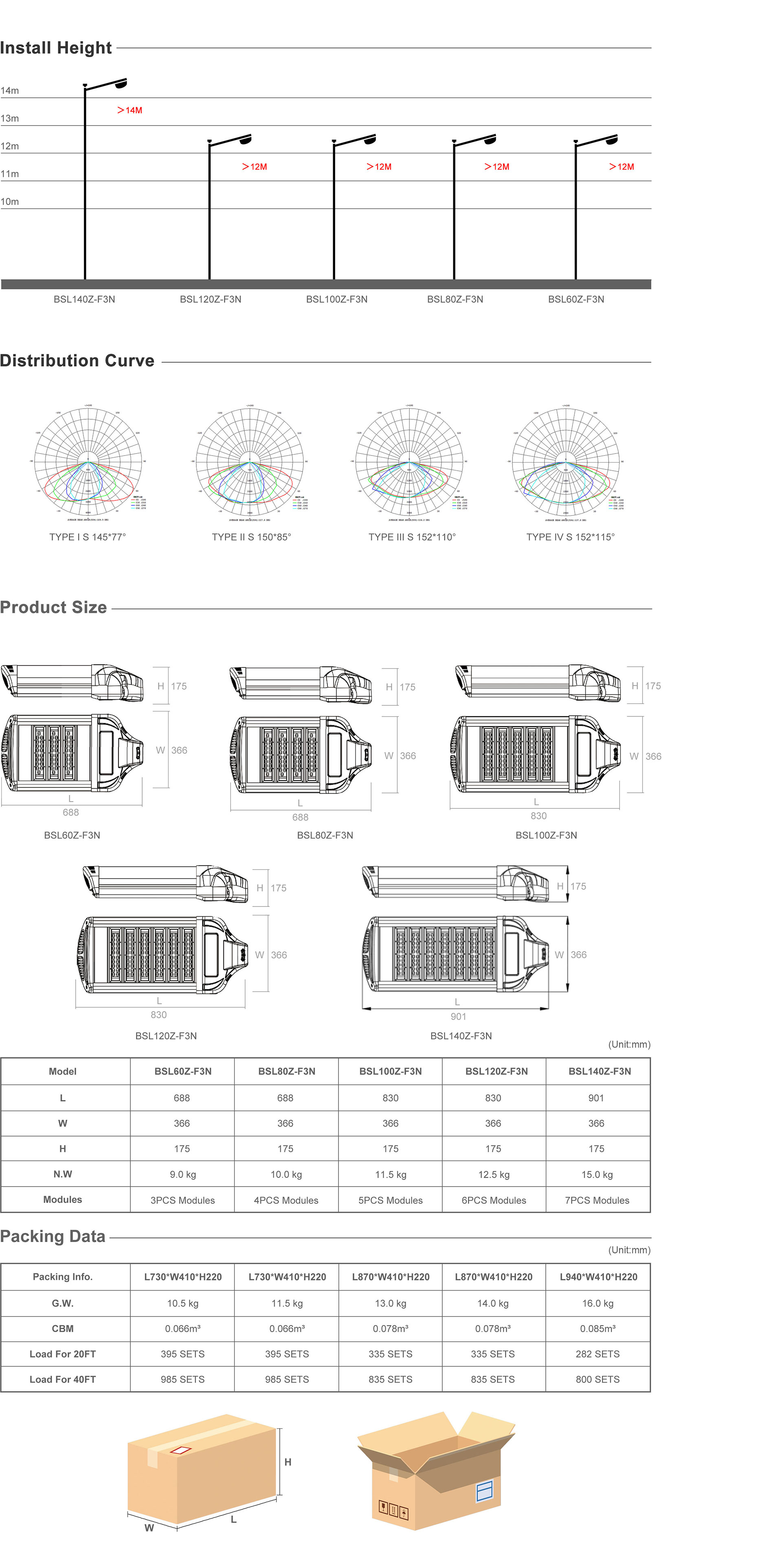

Install Height |
10-12M |
10-12M |
10-12M |
10-12M |
＞14M |
|
Pole Mounting Diameter |
Suitable for ∮ 40-60mm Pole |
||||
|
Warranty |
5 Years |
5 Years |
5 Years |
5 Years |
5 Years |
|
|
Thermal conductivity of PCB board >2.0 |
||||
